MGF and ACF

Price 90000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MGF and ACF Specification

Connecting Type
Flanged / Threaded

Cleaning Method
Backwash

Temperature Range
5C to 60C

Efficiency (%)
95 - 99%

Media Type
Activated Carbon (ACF) / Sand, Gravel, Pebbles (MGF)

Pressure
0.6 to 1.6 MPa (approx. 6 to 16 bar)

Filtration Grade
Medium / Fine

Capacity
500 LPH to 50,000 LPH

Filter Type
Pressure Vessel Filter

Flow Rate
5 m3/hr to 50 m3/hr (customizable)

Condition
New

Material
Mild Steel / MS

Mesh
Varies as per filter media specification

Diameter
500 mm to 2000 mm (customizable)

Construction
Vertical pressure vessel type

Medium Filter
Activated Carbon / Multigrade Sand

Weight
Depends on vessel size and media (approx. 350 kg to 1500 kg)

Shape
Cylindrical

Feature
High efficiency media filtration for water treatment applications

Service Life of Media
1-2 years (depending on usage and quality of water)

Installation
Skid mounted / Foundation mounted

Color
Green (standard), other colors available on request

Surface Finish
Epoxy coated / Painted for corrosion resistance

Accessories
Pressure gauge, valves, sampling point, air vent, drain connection

Inlet/Outlet Size
1 inch to 6 inch (customizable)

Design Standard
IS / ASME code compliant

Application
Raw water, industrial water, ETP, STP, process filtration

Minimum Order Quantity
1 System

Operating Voltage
Not applicable; mechanical system

MGF and ACF Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About MGF and ACF

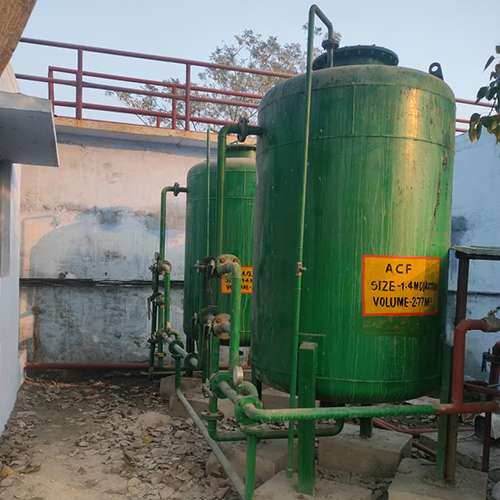

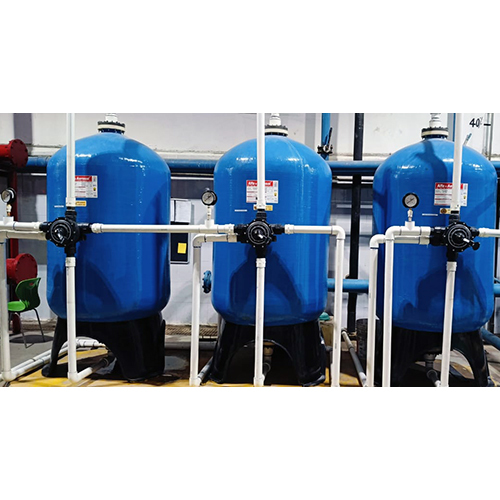

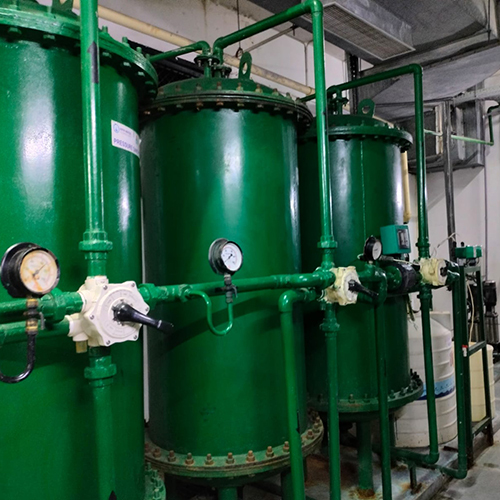

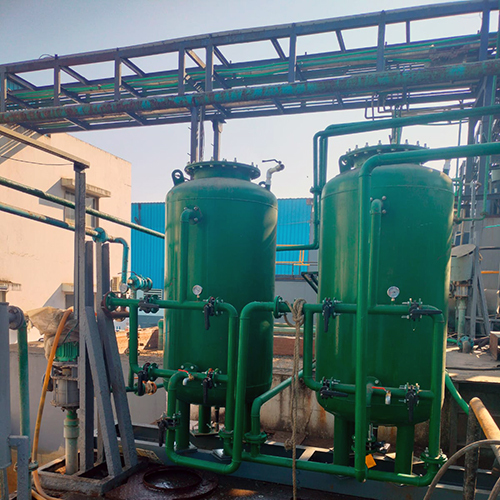

Highly Recommended for flawless water treatment, our MGF (Multigrade Filter) and ACF (Activated Carbon Filter) are astonishing solutions designed for incomparable performance in industrial and municipal settings. Each system features an epoxy-coated/painted mild steel body for top-notch corrosion resistance, customizable sizes (1 inch to 6 inch inlets/outlets, 500 mm to 2000 mm diameter), and operates with highly efficient media filtration (95-99% efficiency). With a service life of 1-2 years and an easy backwash cleaning method, these pressure vessel filters deliver consistent, clean results. Promotion ongoing-shop now for phenomenal pricing and reliability!

Versatile Application & Feature Highlights of MGF and ACF

MGF and ACF filters are extensively used in raw water treatment, industrial process filtration, ETP, and STP solutions. Their superb versatility allows them to handle both specific and general filtration tasks, ensuring purified water across various sectors. Key features include medium to fine filtration grades, skid/foundation mounting, and compliance with IS/ASME codes. These systems promise durability, high efficiency, and adaptability for continuous water clarity in demanding environments.

Packaging, Sample Policy & Export Markets for MGF and ACF

Each MGF and ACF set is securely packaged to prevent any transit damage, adhering to the highest shipping standards. Our sample policy allows preliminary assessment before purchase, helping you achieve the lowest price estimate for your project needs. The proposal amount is customized, ensuring optimal value. We proudly serve main export markets including the Middle East, Africa, Southeast Asia, and more-delivering superior products from India with unmatched reliability.

FAQ's of MGF and ACF:

Q: How are MGF and ACF systems installed and maintained?

A: MGF and ACF systems are supplied as skid mounted or foundation mounted units for hassle-free installation. Maintenance is straightforward; periodic backwashing is recommended to ensure optimal filtration performance.

Q: What are the main benefits of using epoxy-coated or painted filters?

A: The epoxy coating or painting provides exemplary corrosion resistance, significantly extending the service life and reliability of the filters, making them ideal for both indoor and outdoor water treatment applications.

Q: Where can MGF and ACF filters be used effectively?

A: These filters are highly effective in various settings including industrial plants, municipal water treatment facilities, ETP, STP, and any process filtration environment requiring high efficiency and reliability.

Q: What is the typical service life of the filtration media used?

A: The service life of the filtration media is generally 1-2 years, depending on the quality of incoming water and operational usage frequency. Regular monitoring and backwash cycles are advised for optimal results.

Q: How is backwashing performed and why is it important?

A: Backwashing involves reversing the flow of water through the filter to dislodge accumulated contaminants, ensuring the filter media remains clean and effective. This process prolongs media life and maintains high filtration efficiency.
