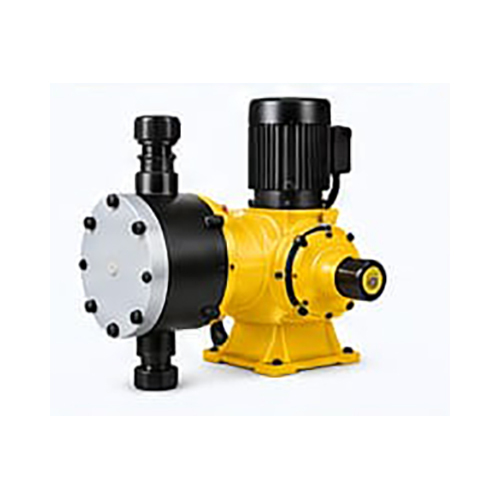

Dosing Pump
Dosing Pump

Dosing Pump

Price 3500.00 INR/ Unit

MOQ : 1 Unit

Dosing Pump Specification

  • Features
  • Corrosion Resistant, Precise Dosing, Leak-free Design
  • Control System
  • Manual Stroke Adjustment, Electric/Pneumatic Actuator
  • Mounting Type
  • Base Mounted
  • Flow Rate
  • 0.5 LPH to 500 LPH
  • Working Temperature
  • 0C to 60C
  • Head Size
  • Up to 100 meters
  • Speed
  • 1440 RPM / 2880 RPM
  • Voltage
  • 220V / 380V
  • Theory
  • Reciprocating Pump (Plunger/Diaphragm type)
  • Max Suction
  • 3 meters
  • Inlet/Outlet
  • Threaded / Flanged
  • Discharge Pressure
  • Up to 10 Bar
  • Frequency
  • 50 Hz / 60 Hz
  • Noise Level
  • 70 dB
  • Caliber
  • DN8 - DN40
  • Material
  • PVC, SS304, SS316, PP, PVDF, PTFE
  • Structure
  • Horizontal Mounted
  • Power
  • 0.18 kW - 2.2 kW
  • Standard
  • ISO 9001:2015 Certified
  • Fuel Type
  • Electric
  • Pressure
  • Up to 10 Bar
  • Usage
  • Chemical Dosing, Water Treatment, Effluent Treatment
  • Application
  • Industrial, Water & Wastewater, Chemical Processing
  • Suction Type
  • Positive Suction
  • Seals Type
  • Double Sealed Glands / PTFE Gasket
  • Priming
  • Self Priming
  • Pump Type
  • Diaphragm / Plunger Dosing Pump
  • Capacity
  • Highly adjustable, based on model
  • Motor Protection Class
  • IP55
  • Max Particle Size
  • < 0.3 mm
  • Duty Cycle
  • Continuous
  • Viscosity Handling
  • Up to 800 cPs
  • Stroke Adjustment Range
  • 10% to 100%
  • Ambient Temperature
  • Up to 45C


Dosing Pump Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Delivery Time
  • 5-7 Days


About Dosing Pump



Experience the latest in dosing innovation with our Dosing Pump, meticulously engineered for inestimable performance across diverse industrial needs. Personalise your operation with an ace stroke adjustment range of 10% to 100%. This praiseworthy pump caters to fluid viscosities up to 800 cPs, with a robust IP55 motor, handling particles below 0.3 mm. Select from superior materials-PVC, SS304, SS316, PP, PVDF, PTFE-for maximum corrosion resistance. Enhanced by double-sealed glands and a leak-free design, it guarantees precise, continuous dosing, perfect for chemical, water, or effluent treatment. headlines:[ { "headline": "Versatile Applications and Plant Advantages", "content": "Beyond standard chemical dosing, this dosing pump excels in water and wastewater management, effluent treatment, and chemical processing plants. Its calibrated precision and high adjustability make it ideal for a range of other industrial applications, from process industries to energy production. Plant operators benefit from its easy installation, leak-free function, and robust construction, ensuring low maintenance and long service life in demanding environments." }, { "headline": "Supply Ability and Domestic Market Excellence", "content": "With praiseworthy supply ability, we cater seamlessly to India's expansive domestic market. Our swift delivery times ensure your dosing pump reaches the site with minimal wait, following each order from warehouse to drop-off. Supporting customers across the country, we guarantee dependable availability and flexible solutions for quick turnaround and continuous operation, helping keep your projects on track without delay." } ], faqs:[ { "question": "How does the manual stroke adjustment work on the dosing pump?", "answer": "The manual stroke adjustment allows users to precisely control the pump's dosing rate, enabling flexible operation from 10% to 100% of the maximum capacity according to process requirements." }, { "question": "What are the main benefits of using this dosing pump in industrial applications?", "answer": "Key benefits include exceptional corrosion resistance, accurate and reliable performance, continuous duty capability, leak-free design, and suitability for varying liquid viscosities, backed by ISO 9001:2015 certification." }, { "question": "Where can this dosing pump be used besides chemical dosing?", "answer": "Apart from chemical dosing, the pump is ideal for water and wastewater treatment, effluent management, and other demanding processes in industrial and chemical plants." }, { "question": "What delivery options are available for domestic customers?", "answer": "We provide prompt delivery across the Indian domestic market, ensuring reliable drop-off and support so customers can start using their pumps without unnecessary delays." }, { "question": "What kind of control systems are available for this pump?", "answer": "The dosing pump supports both manual stroke adjustment and electric or pneumatic actuators, giving users the flexibility to select the ideal control system for their application." } ] }

Versatile Applications and Plant Advantages

Beyond standard chemical dosing, this dosing pump excels in water and wastewater management, effluent treatment, and chemical processing plants. Its calibrated precision and high adjustability make it ideal for a range of other industrial applications, from process industries to energy production. Plant operators benefit from its easy installation, leak-free function, and robust construction, ensuring low maintenance and long service life in demanding environments.


Supply Ability and Domestic Market Excellence

With praiseworthy supply ability, we cater seamlessly to India's expansive domestic market. Our swift delivery times ensure your dosing pump reaches the site with minimal wait, following each order from warehouse to drop-off. Supporting customers across the country, we guarantee dependable availability and flexible solutions for quick turnaround and continuous operation, helping keep your projects on track without delay.


FAQ's of Dosing Pump:


Q: How does the manual stroke adjustment work on the dosing pump?

A: The manual stroke adjustment allows users to precisely control the pump's dosing rate, enabling flexible operation from 10% to 100% of the maximum capacity according to process requirements.

Q: What are the main benefits of using this dosing pump in industrial applications?

A: Key benefits include exceptional corrosion resistance, accurate and reliable performance, continuous duty capability, leak-free design, and suitability for varying liquid viscosities, backed by ISO 9001:2015 certification.

Q: Where can this dosing pump be used besides chemical dosing?

A: Apart from chemical dosing, the pump is ideal for water and wastewater treatment, effluent management, and other demanding processes in industrial and chemical plants.

Q: What delivery options are available for domestic customers?

A: We provide prompt delivery across the Indian domestic market, ensuring reliable drop-off and support so customers can start using their pumps without unnecessary delays.

Q: What kind of control systems are available for this pump?

A: The dosing pump supports both manual stroke adjustment and electric or pneumatic actuators, giving users the flexibility to select the ideal control system for their application.
